DIN912 Allen Bolt Weight Table

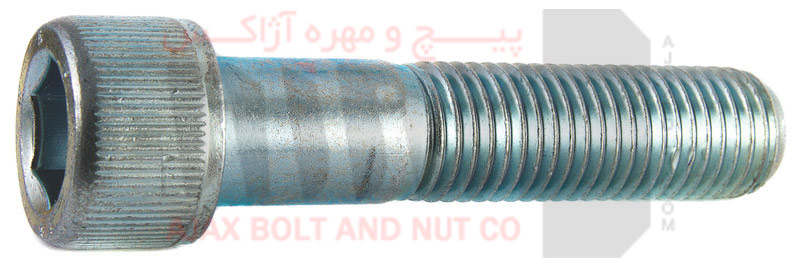

Allen Bolts or cap head socket screws are usually manufactured partially threaded and of 8.8 or 12.9 class according to DIN912 standard. Below is the weight table associated with these bolts. numbers are in gr.

L, mm	M5	M6	M8	M10	M12	M14	M16	M20	M24
10	-	4,70	-	-	-	-	-	-	-
12	2,95	5,07	10,90	-	-	-	-	-	-
16	3,45	5,75	12,10	20,90	-	-	-	-	-
20	4,01	6,53	13,40	22,90	32,10	-	-	-	-
25	4,78	7,59	15,00	25,40	35,70	-	-	-	-
30	5,55	8,30	16,90	27,90	39,30	53	-	-	-
35	6,32	9,91	18,90	30,40	42,90	-	-	-	-
40	7,09	11,00	20,90	32,90	46,50	63	91	150	-
45	7,86	12,10	22,90	36,10	50,10	-	97,6	161	-
50	8,63	13,20	24,90	39,30	54,50	73	106	172	300
55	-	14,30	26,90	42,50	58,90	-	114	183	-
60	-	15,40	28,90	45,70	63,40	84	122	194	330
65	-	-	31,00	48,90	67,80	-	130	205	-
70	-	-	33,00	52,10	71,30	96	138	216	363
75	-	-	-	52,63	-	-	142	-	-
80	-	-	37,00	58,50	80,20	108	154	241	399
90	-	-	-	64,90	89,10	120	170	266	-
100	-	-	-	71,20	98	132	186	291	471
110	-	-	-	77,50	107	-	202	316	-
120	-	-	-	83,80	116	-	218	341	-
130	-	-	-	90,10	125	-	234	-	-
140	-	-	-	96,40	134	-	250	391	-
160	-	-	-	103,20	152	-	282	441	-
