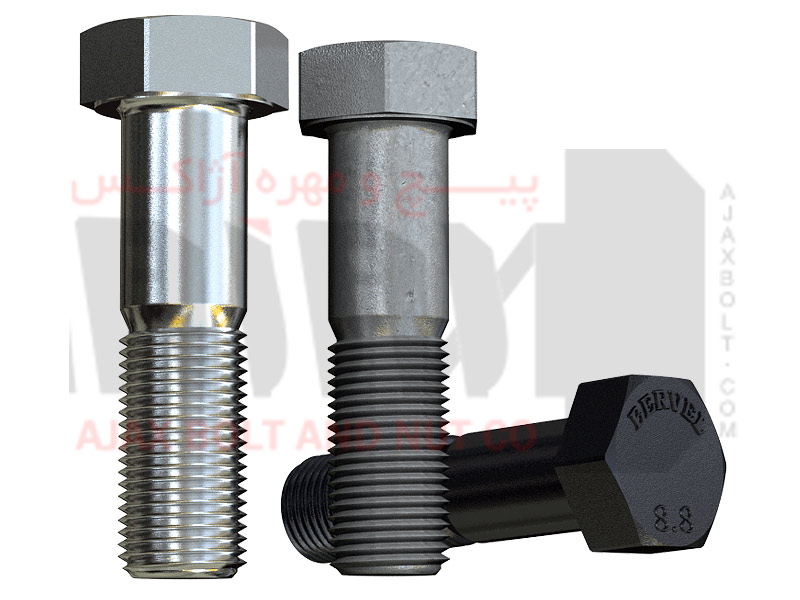

DIN931 Bolt Weight Table

Using partially threaded hex bolts DIN 931 seems reasonable if the clamping parts are located at the shank section of the bolt, more so if the connection is facing vibrations. However, you must consider tension concentration at the end of the threads and the beginning of the shank. Choosing fully threaded and partially threaded hex bolts depends more on the application and requires both knowledge and experience. the weight table of hex bolts DIN931 is brought for you below. the numbers are in gr.

L, mm M6 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M42
35 9,13 - - - - - - - - - - - - -
40 10,20 20,30 35,00 49,10 - - - - - - - - - -
45 11,30 22,20 38,00 53,60 - - - - - - - - - -
50 12,30 24,20 41,10 58,10 82,00 107 - - - - - - - -
55 13,40 25,80 43,80 62,60 88,10 115 - - - - - - - -
60 14,40 27,80 46,90 67,00 94,10 123 162 207 - - - - - -
65 15,40 29,80 50,00 70,30 98,80 131 171 219 - - - - - -
70 16,40 31,80 53,10 74,70 105 139 181 231 - - - - - -
75 17,40 33,70 56,20 79,10 111 147 191 243 - - - - - -
80 18,40 35,70 59,30 83,60 117 155 200 255 311 392 511 657 - -
85 19,50 37,70 62,40 88,10 123 163 210 267 326 410 534 - - -
90 20,40 39,60 65,50 92,40 127 171 220 279 341 428 557 712 - -
100 22,80 43,50 71,70 101,00 139 186 240 303 370 464 603 767 951 1136
110 - 47,40 74,80 109,00 151 202 260 327 400 500 650 823 1020 1240
120 25,51 51,30 77,90 118,00 164 218 280 351 430 535 695 880 1090 1320 1870
130 - 55,20 81,00 124,00 174 230 296 374 450 560 720 920 1150 1390 1980
140 29,98 59,10 84,10 133,00 185 246 316 398 480 595 765 975 1220 1470 2090
150 - 63,00 87,20 141,00 196 262 336 422 510 630 810 1030 1290 1550 2200
160 - 66,90 90,30 150,00 207 278 356 446 540 665 855 1085 1350 1630 2310
170 - - 93,40 159,00 218 294 376 470 570 700 900 1140 1410 1710 2410
180 - 68,49 96,50 167,00 229 310 396 494 600 735 945 1200 1480 1790 2520
190 - - 99,60 176,00 240 326 416 519 630 770 990 1250 1540 1870 2630
200 - 79,40 103,00 184,00 251 342 436 544 660 805 1030 1310 1610 1950 2740
220 - - - - - 374 - 594 - 870 1130 1420 - 2110
240 - - - - - 406 - 644 - 935 1220 1530 - 2270
260 - - - - - 438 - 694 - 1000 1310 1640 - 2430
280 - - - - - 470 - 744 - 1076 - 1750 - 2590
300 - - - - - 502 - 785 - 1141 - 1860 - 2750
