DIN933 Bolt Weight Table

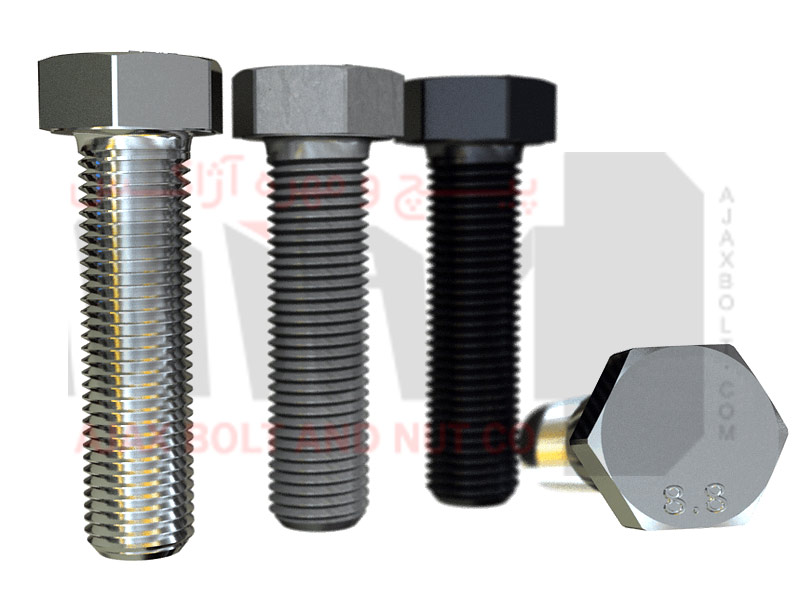

Fully threaded hex bolts DIN933 have equal diameter all over the threaded part allowing the load and tension to be properly propagated all over the bolt and disallow tension concentration as opposed to partially thread hex bolts DIN931. Fully threaded hex bolts have lower weight than partially threaded hex bolts of the same diameter.below is the weight chart associated with hex bolt DIN 933. numbers are in gr.

L, mm M5 M6 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36
8 2,38 - - - - - - - - - - - - - -
10 2,63 4,08 9,10 - - - - - - - - - - - -
12 2,87 4,42 9,80 17,20 - - - - - - - - - - -
14 3,12 4,76 10,50 18,20 - - - - - - - - - - -
16 3,37 5,11 11,10 19,20 27,70 - - - - - - - - - -
18 3,62 5,45 11,70 20,20 29,10 - - - - - - - - - -
20 3,87 5,80 12,30 21,20 31,00 48,00 - - - - - - - - -
25 4,49 6,65 13,90 23,70 34,10 53,00 70,20 - - - - - - - -
30 5,11 7,51 15,50 26,20 37,70 57,90 76,90 104 134 - - - - - -
35 5,73 8,37 17,10 28,70 41,30 62,90 83,50 112 145 - - - - - -
40 6,35 9,23 18,70 31,20 44,90 67,90 90,20 120 155 193 244 - - - -
45 6,99 10,10 20,30 33,70 48,50 72,90 97 128 165 206 259 - - - -
50 7,59 11,00 21,80 36,20 52,00 77,90 103 136 176 219 274 - - - -
55 8,21 11,90 23,40 38,10 55,60 82,80 110 145 186 232 289 - - - -
60 8,83 12,70 25,00 41,30 58,20 87,80 117 153 196 244 304 416 543 - -
65 - 13,60 26,60 43,80 62,80 92,80 123 161 207 257 319 435 560 - -
70 - 14,40 28,20 46,30 66,40 97,90 130 169 217 269 334 454 590 - -
75 - 15,30 29,80 48,80 70,00 102 137 177 227 282 348 473 614 - -
80 - 16,20 31,40 51,30 73,60 107 144 186 238 295 363 492 637 - -
85 - - 33,00 53,80 77,20 112 150 194 247 308 378 512 661 - -
90 - 18,00 34,60 56,30 80,80 117 157 202 258 321 393 531 685 - -
100 - 19,80 37,70 61,30 88,00 127 170 218 279 346 423 569 732 920 1140
110 - - 40,90 66,40 95,20 137 184 - 300 - 453 608 779 978 1200
120 - - 44,20 71,40 102 147 197 - 320 - 483 647 827 1040 1260
130 - - 47,20 76,40 109 - 210 - 340 - 513 685 874 1090 1330
140 - - 50,40 81,40 116 - 224 - 361 - 543 724 921 1150 1400
150 - - 53,70 86,40 123 - 237 - 381 - 572 762 969 1210 1470
160 - - 54,71 89,93 130 - 251 - 402 - 602 - - 1270 1540
180 - - - 98,81 144 - 278 - 442 - 662 - - 1390 1680
200 - - 66,70 111,11 158 - 294 - 484 - 722 - - 1500 1810
